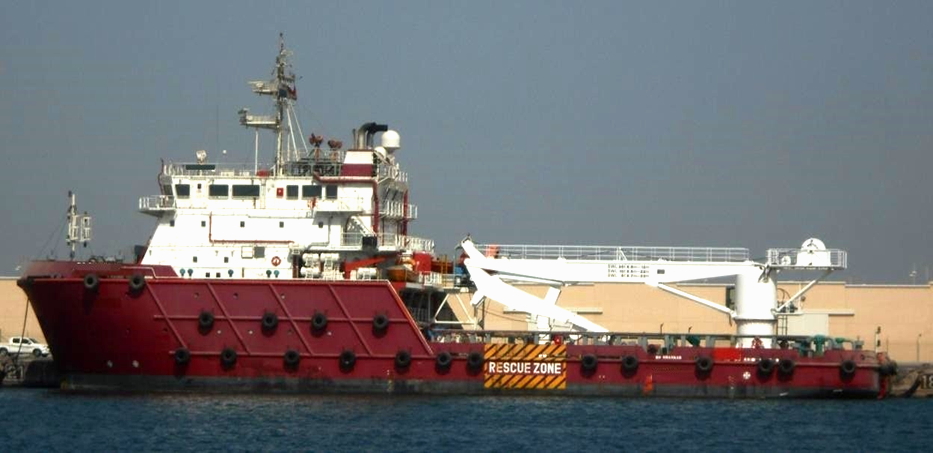

66M DP2 Multi-Purpose Vessel for Sale

MPSV · For Sale

Specifications

MMSI 000225 Deck Space sqM 425
DP TypeDP2 BHP 5150
Year Built 2014 Bullard Pull T 0
Location IndonesiaBerth P 81
LOA m 65.80 Crane Capacity T 30
Draft m 5.10Accommodation81
Fifi FIFI 1DWT1653


More Information



66M DP2 Multi-Purpose Vessel for Sale

General Particular

Classification/Flag : ABS / Panama
Class Notation : A1, FFV Class 1, DPS-2 Offshore Support Vessel, SPS, E AMS, , TCM
Year Built: 2014 – August – 19

Principal Dimensions:
LOA 65.80 m
Length B.P. 58.80 m
Breadth Moulded 15.80 m
GRT / NRT 2475 tons / 742 tons
Deadweight 1653 tons
Draft Moulded(scantlings) 6.00 m
Draft Moulded (design) 5.10 m
Depth Moulded 7.00 m
Summer Draft 5.10 m

Machinery and Propulsion:
Main Engine 2 x 1920 kW Yanmar 6EY26W
Propellers 2 x 4 CPP of 2600mm dia.
Bowthruster 2 x 850 kW HRP 5007
Stern Thruster 1 x 650 kW HRP 5007
Main Generators 3x 470 kW Volvo Penta D16C – AMG
Emergency Generator 1 x 95 kW Volvo Penta D7A T
Shaft Generators 2 x 1152 kW Leroy Somer
Rudder 2 Nos. Make-West Marine, Type-HLFR
FC-4.39, tourque 3.8 TM
Speed: 11.5 knots @ around 100% MCR
11.00 knots at 90% MCR
Avg Fuel Consumption 12 m3 @ Economical / 15 m3 @ MCR

Cargo Capacity:
Total Deck Area 425m² Available Cargo Area: 280m²
Deck Loading: 10t/m²
Cargo Manifold:
Fuel manifold 5″ Camlock system-1 Fwd & 1 Aft on Main deck both sides
Drill Water Manifold 5″Camlock system-1 Fwd&1 Aft on Main deck both sides
FreshWater Manifold 5″Camlock system-1 Fwd&1 Aft on Main deck both sides

Reducers / Hoses:
Fuel Camlock reducers 5” to 3” – 1
Water Camlock reducers 5” to 3” – 1
Oil cargo Hose: 3” x 18 MTR Oil Cargo Hoses (17 bars / 246.5 PSI)-2 Nos
Water Hose: 3” x 18 MTR Water Cargo Hoses (10 bars / 145 PSI)-2 Nos

Refrigerated Storage:
Freezer Room Capacity 24m³
Chiller Room Capacity 20m³

Deck Machinery:
Moonpool 4.5m x 4.5m
Stern roller 1 x 3 metres
Capstan 2 x electro hydraulic x [email protected]/min.
Tugger winch 1 x electro hydraulic x [email protected]/min.
Offshore Crane SWL 30 T x 12 m
SWL 10 T x 22 m , SWL 5T x 33 m
Steering Gear Unit 2 nos. Electro Hydraulic Ram Type
Steering Gears of 2x5T-M Tourque
Capacity at 2 x 35 deg rudder angle
make-West marine
Anchors 2 x U-19 (HHP)
Anchor Chain 12 Length 42mm Ø x 27.5 m
Windlass Electro- Hydraulic 226WTJ-42A

Fire Fighting:
Fire Fighting Vessel Class 1
Monitor Type: 2 x water/foam remote control
Monitor Capacity: 2 x 1200 m³/hr.
Range: 120 m /30 m
Pump Capacity: 2 x 1550 m³/hr.

Water Mist System 1 – NK LP Water Mist Local Fire Fighting
System for Machinery Space
CO2 System 1 – NK High Pressure CO2 Fixed Fire
Fighting System for ER
Fire Detection System 1 Unit, Make-Consilium Marine AB

Accommodation:
1 Man x 17 Cabins
2 Men x 8 Cabins
4 Men x 12 Cabins
Total Complement: 81 Persons

1 Separate Mess for Officers
1 Separate Mess for Crew
1 Recreation Room
1 Prayer Room
1 Gymnasium Room
