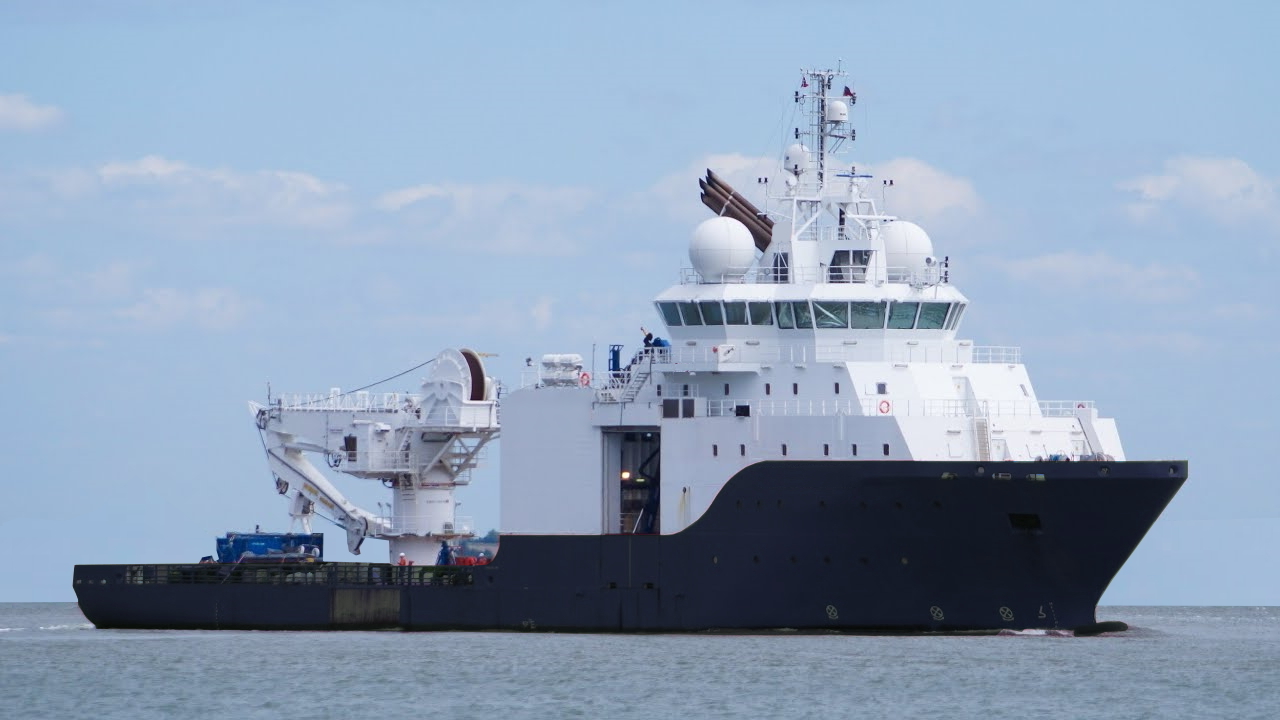

89M DP-II MULTI-PURPOSE SUBSEA VESSEL FOR SALE
VESSEL SPECIFICATIONS
Class: DNV, +1A1, DYNPOS-AUTR, E0, DK (+), CLEAN COMF (V3), NAUT-OSV(A)
Built: 2009
DIMENSIONS & CAPACITIES
LOA: 89 m
Length between P.P.: 78 m
Breadth: 16.00 m
Draft : 6.10 m
Deck space: 630 m2
Deck strength: 5 t / m2
Gross tonnage: 3923 tonnes
Net tonnage: 1177 tonnes
DWT: 2350 tonnes
Cargo holds: 270 m2
Water ballast (approx): 1168 m3
Fresh water (approx): 671 m3
Fresh water production: 10-15 m3/day
Fuel oil (approx): 900 m3
Endurance at sea: Approx. 50 days
SPEED
Economical speed: 9 knots
Service speed (approx): 12 knots
Max speed (approx): 14 knots
MAIN EQUIPMENTS
Main engines: 4 x Cummins QSK 60 DMI 4 x 1800 kW
Generators: 4 x 1800 kW
Stern Thrusters/Prop.: 2 x 2500 kW Voith
Fwd thrusters: 2 x 1000 kW Tunnel
Fwd Azimuth: 1 x 1000 kW Azimuth
MAIN CRANE
National Oilwell Offshore Crane – 50 t AHC
DECK CRANES
1: 1 x Palfinger 32002 on moonpool tower, 6t/ 4.5m radius
2: 1 x Palfinger 4501A in ROV hangar, 780kg/ 5m radius
ACCOMMODATION
Total: 66 persons
Berths: 10 x 1 / 28 x 2
Lounge: 1 x 40 m2
Mess room: 1 x 80 m2
Meeting room: 1 x 15 m2
Online room: 1 x 25 m²
Offline room: 1 x 40 m2 (offline/geo room)
ROV: 1 x 31 m2 (control room)
Office: 1 x 15 m2 (client)
Hospital: 1 x 14 m2
Gymnasium: 1 x 23 m2
NAVIGATION / DP SYSTEM
Radar: 1 x Furuno 10cm radar (S-band) w/Arpa 1 x Furuno 3 cm radar (X-band 9Ghz) w/Arpa
Gyro: 3 x Gyro compasses
GPS: 2 x DGPS systems
Heading Sensor: 1 x Seapath 200
MRU: 3 x Kongsberg MRU 5
DP: 2 x Kongsberg DP Operator Stations
Sensors: 2 x wind sensors
Echo Sounder: 1 x navigation echo sounder
Speed log: 1 x speed log
ECDIS: Dual ECDIS
USBL: 1 x HiPAP 500 1 x HiPAP 100
COMMUNICATION EQUIPMENT
VHF: 2 x VHF w/DSC 2 x VHF
MF / HF: 1 x MF/HF w/DSC
Inmarsat: 2 x Inmarsat-C with SSAS alarm
GMDSS: 1 x GMDSS A3
Fleet: 1 x Fleet 77 w/fax and interface to DP
Navtex: 1 x Navtex
VSAT: Dual hybrid C & Ku -band
Iridium: L-band voice
GSM: 1 x GSM mobile phone
Portable VHF: 3 x Portable VHF (GMDSS), (emergency only)
UHF: Portable and stationary, available for internal communication
ClearCom: Available in office and operation areas
ROV
ROV HANGAR
A ROV hangar is situated aft of the accommodation area. The vessel holds a ROV mechanical and electrical workshop.
LAUNCH & RECOVERY SYSTEMS ROV
ROV 1:
Schilling HD 5000 m Work Class ROV
ODIM A-frame installed in ROV hangar
AHC ROV umbilical winch
ROV 2:
Schilling HD 5000 m Work Class ROV
ODIM Launch and Recovery System
installed in moonpool
AHC ROV umbilical winch
