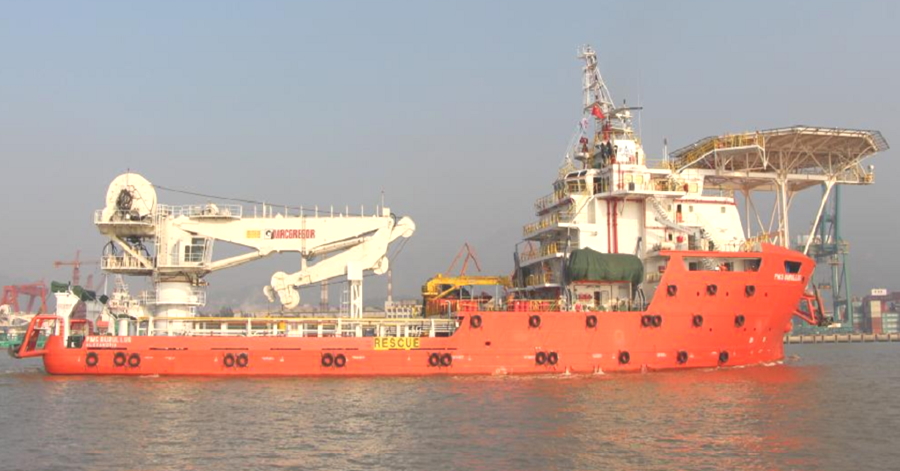

85M DP2 Diving Support Vessel for Sale
GENERAL DATA
Year Built NEW BUILDING
Design KHIAM CHUAN MARINE PTE LTD
Type 85M SSV
Flag: TBA
Registry Port TBA
Classification ABS
Class Character and Notations ABS + A1(E) RW, OFFSHORE SUPPORT VESS（SUPPLY-HNLS, FFV1 ）,SPS, HDC (7.5t/m2,MAIN DK.) , + AMS , ACCU + DPS-2, HELIDK, CRC
MAIN DIMENSIONS
L.O.A. 85M
B. Mld. 22.00M
D. Mld. 8M
Draft Load 6.3M
Draft Light ~4.9m
Gross Tonnage 4939
Deadweight 3049
PERFORMANCE
Maximum Speed 12.5knots at 5.9m
ACCOMMODATION
Crew 24
Passenger Special Person: 176
Total: 200 P
MACHINERY & PROPULSION
Main Engine Niigata 6L28AHX
Horsepower 2x3000HP
Propeller 2×4 blades F.P.P
Generator Sets Auxiliary Generator ：
3x830KW Caterpillar
Shaft Generator：
2x1500KW Leroy Somer
Emergency Generator：
192KW Cummins CCFJ192Y-KC
Bow Thruster 2x12T Kawasaki
Stern Thruster N/A
DECK EQUIPMENT
Capstan 2x10T at 15m/min
Tugger 2x10T at 15m/min
4-Point Mooring Winch 4x40T at 10m/min
Main Crane 100T at 15m
Service Crane 3T at 14m
SAFETY & FIFI & ANTIPOLLUTION EQUIPMENT
Life Raft 8×25 Persons;
Life & Rescue Boat 2×75 Persons
FiFi 2x2200cu.m/hr
DECK CAPACITIES
Deck Area 740 sq.m
Deck Cargo 800T
Deck Loading 7.5T/sq.m
CARGO CAPACITIES
Fresh Water 744 cu.m
Drill Water 1750 cu.m
HEEL. Water 450 cu.m
Ballast Water 280 cu.m
Fuel Oil 1160 cu.m
Bulk 226 m3
Liquid Mud/Brine 730 cu.m
Mud 415 cu.m
DISCHARGING RATES
P. Water 150 cu.m/hr at 0.75 MPa
D./B. Water 150 cu.m/hr at 0.75 MPa、200cu.m/hr at 1.0 MPa
Diesel Oil 2×150 cu.m/hr at 0.75 MPa
Bulk 2×30 cu.m/hr at 0.56 MPa
Liquid Mud 2×70 cu.m/hr at 0.85 MPa
Brine 2×70 cu.m/hr at 0.85 MPa
