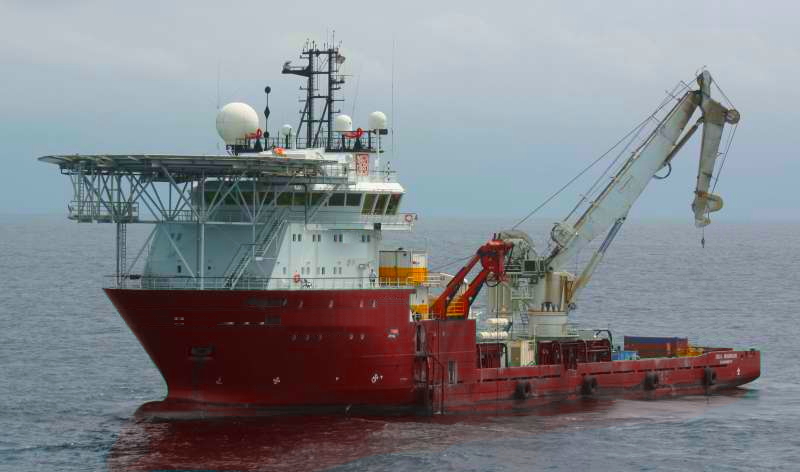

79M DPII Multipurpose Supply Vessel for Sale
General Particular
Year Built: 2004
Class: DNV ✠ 1A1 Fire Fighter I SF LFL* COMF-V(3) HELDK-S E0 DYNPOS –AUTR CLEAN DK (+) HL(2,8)
DIMENSIONS
Length between PP: 78.80m
Breadth moulded: 18.80m
Depth: 7.60m
Draft(Min/Max): 4.80m / 6.22 m
Deadweight: 3,660t
Gross tonnage: 3,963UMS
Moonpool: NA
Helideck (Diam/Tonnage): 18 m / 9.3 t (Super Puma AS332)
CAPACITIES & DELIVERY RATES
Deck area: 850m² @10t/m²
Mezzanine deck area:160m² @10t/m²
Deck cargo (transit – operations): 2,500t @1m above deck
Fuel oil (capacity – transfer): 1,288 m³ – 2 x 250 m3/h @ 9 bars
Drill or Water ballast (capacity – transfer): 2,658 m³ – 2 x 250 m3/h @ 9 bars
Antiheeling (capacity – transfer): 540 m³ – 1,400 m3/h
Fresh water (capacity – transfer): 744 m³ – 2 x 250 m3/h @ 9 bars
Mud / Brine (capacity – transfer): 600 m³ / 750 m3 – 4 x 100 m3/h @ 24 bars
Methanol (capacity – transfer): 161 m³ – 2 x 100 m3/h @ 9 bars
Dry bulk (capacity – transfer): 384 m3 – 80 t/h @ 8 bars
Foam: 4.5m3
MACHINERY & PERFORMANCE
PROPULSION – MACHINERY
Main propulsion: 2 x 2,500kW CP Azimuth thrusters
Bow thrusters: 1 x 883kW CP Tunnel
Bow thruster retractable: 1 x 883kW CP Azimuth
Main generator: 4 x 1,655kW – 690V
Auxiliary generator: NA
Emergency generator: 1 x 370kW – 440V
SPEED & CONSUMPTION (Information only)
Maximum speed (100 ) ligth vessel:14 knots – 25t/day
Service speed (80 ) medium loaded: 11 knots – 14t/day
Stand-by at port: 2t/day
Stand-by on DP: 7t/day
EQUIPMENT & ELECTRONICS
DECK EQUIPMENT
Tuggers: 2 x 12t
Capstans: 2 x 10t
Deck service air supply: 7 bars
Deck power supply: 4 x 200 kW – 690 V & 1 x 450 kW – 440V
Work boat: NA
Deck provision crane: 2 x 3t @ 12m
Offshore crane 1: NOV knuckle boom Harbour capacity: DAF 1.2 – 110t @12m – 40t @30m
Offshore capacity: DAF 1.6 – 70t @17m – 30t @30m
Main winch: 70t / 61t – 1,600m – AHC
Auxiliary winch: 10t / 10t – 2,000m – AHC
ACCOMMODATIONS
Accommodations for: 75 persons
Single cabins: 13
2 men cabins: 27
4 men cabins: 2
Offices: 3
Hospital: 1
Mess / Day rooms: 1 Mess / 2 Day rooms
Laundry: 1
Galley: 1
Other: 1 Conference room, 1 Gym
Air conditionning: YES
Water maker:1 Osmoser – 12 m3/day
COMMUNICATION
Inmarsat: 2 x SatC
VSAT: 1 x C band 256 Kbit
Video network: YES
DYNAMIC POSITIONING
Maker: KONGSBERG SDP-21
Type: DP 2
SAFETY EQUIPMENT
Fi-Fi: Class 1
Pumps: 2 x 1,500m3/h
Monitors: 2 x 1,200m3/h
Fast Rescue Craft: 1 x Norsafe
