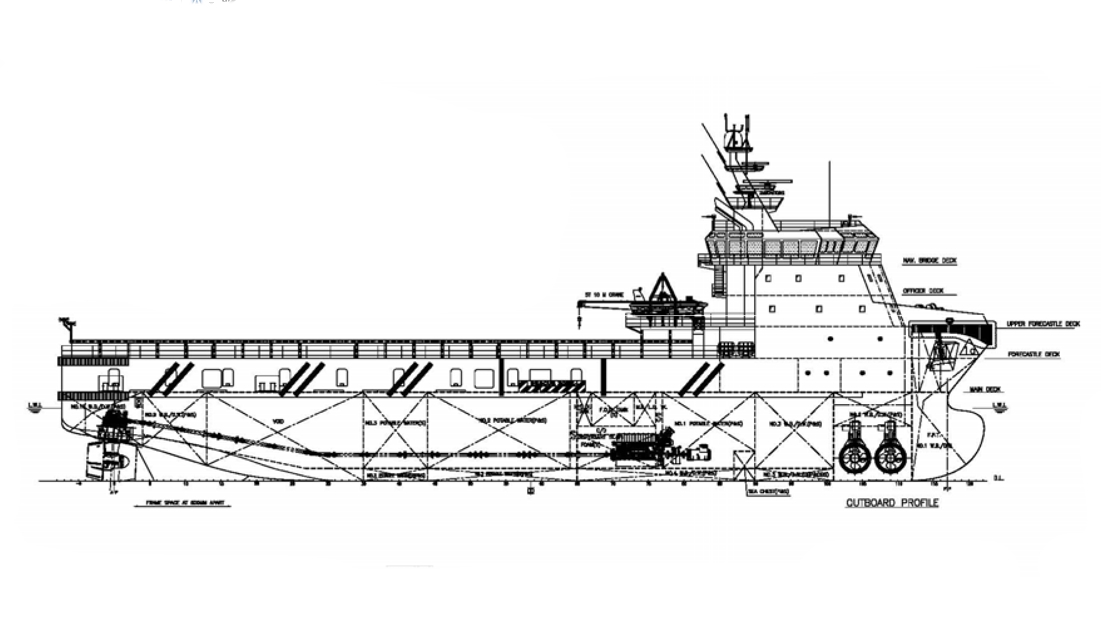

78M DP2 Platform Supply Vessel for Sale
New Built
General Particular
LENGTH (OA) 78.0 M
BREATH : 18.6 M
DEPTH: 7.8
DRAFT : 6.0 M
GRT / NRT : 4393/1317 (Approx.)
CLASSIFICATION : BV
CLASS NATATION : PRODUCT(FP>60 DEG C) LHNS,FIRE-FIGHTING SHIP 1 WATER SPRAYING,OIL RECOVERY
SHIP,SPECIAL SERVICE – SPECIAL PURPOSE
SHIP,UNRESTRICTED NAVIGATION,*DYNAPOS
AM/AT R,IN WATER SURVEY,AUT-UMS22
COMPLY WITH MLC2006;
PERFORMANCE
DEADWEIGHT (appx) : 4000Tonnes
DECK LOADING : 5 Tonnes/M2
DECK AREA : 800 M2
TRIAL SPEED, Max.100MCR. : 13 knots @ 100% MCR
BOLLARD PULL : Not Apply
MAIN ENGINE / GENERATORS & ELE. POWER
MAIN ENGINE : 2 X3000PS @ 750RPM, YANMAR.
MAIN PROPULSION : 2 x CP Azimuth, Schottel
BOW THRUSTER : 2x15T E-motor driven tunnel, Kawasaki Wuhan
MAIN GENERATOR : 3x550kW, 415V/3/50HZ, YANMAR.
SHAFT-GENSET : 2x1100KW, 415V/3/50HZ,
EMERGENCY-GENSET : 1x150kW, 415V/3/50HZ, Cummins/USA.
OUTLET POWER POINTS : AC 415/50/3, 8 sets in Main Deck;
SHORE POWER POINTS : AC 415/50/3, 200A, in Main Deck;
INTERNET CABLE NET : Full Set Cable Ready.
SAT. TV CABLE NET : Full Set Cable Ready.
MAIN SWITCH BOARD : Fully with Auto Power Managing System.
FRESH WATER MAKER : 1 x 17t/day Reverse Osmosis type
DECK EQUIPMENT
ANCHOR WINDLASS : 15 Ton,12m/min for 50mm dia.
CAPSTANS : 2 x 10 tonnes @ 15m/min
TUGGER WINCH : 2 x 10 tones @ 15m/min
ONE DECK PROVISION CRANE
CARGO RAIL,WOODEN DECK : 5Tx10M Fixed Boom, Ele-Hyd. Local control. : Fitted Fully ship set;
DP2 SYSTEM (KONSBERG)
K-POS DP21 & CONTROL : 1 shipset, For & Aft main control console
INTERFACE SYSTEM : in wheel house & All Power Sysetm
JOYSTICK CONTROLLED : 1 shipset with main control console
SYSTEM : in forward to the wheel house
ACCOMODATION
1 – MAN CABIN : 8 units (8 Men)
2 – MAN CABIN : 4 units (8 Men)
4 – MAN CABIN : 11 units (44 PAX)
TOTAL : 60 Men
HOSPITAL : 1 berth
ONE MEETING ROOM; ONE PRAY ROOM;
ONE GYMNASIUN ROOM; ONE MULT-PROPOSE ENT-ROOM;
ONE OPERATION OFFICE; ONE CHANGE & LAUNDRY ROOM;
ALL ACCOMMODATION FULLY MARINE CENTROL AIR-CONDITION (100% BACKUP)
ALL CANBIN FITTED INDPENDENT TOILET MODEL
PROVISIONAL STORE : 25 M3 (Approx.)
FREEZER ROOM : 16 M3 (Approx.)
CHILLER ROOM : 16 M3 (Approx.)
NAVIGATION / COMMUNICATION EQUIPMENT
X-BAND RADAR : 1 set Furuno / JRC
S-BAND RADAR : 1 set Furuno / JRC
ECHO SOUNDER : 1 set Furuno / JRC or equivalent
GPS PLOTTER : 1 set Furuno / JRC
GYRO COMPASS : 1 set Anschuetz or equivalent
MAGNETIC COMPASS : 1 set Saura or equivalent
AUTOPILOT & STEERING GEAR : 1 set Anschuetz or equivalent
WEATHER FACSIMILE ECEIVER : 1 set Furuno / JRC
DOPPLER SPEED LOG : 1 set Furuno / JRC or equivalent
AUTO IDENTIFICATE SYSTEM (AIS) : 1 set
SHIP SECURITY ALERT SYSTEM : 1 set
BNWAS : 1 set
GMDSS : A1+A2+A3
ECDIS : 1 set
SART : 2 unit Alden/Joltron or equal
PUBLIC ADDRESS SYSTEM : 1set
INTERCOMMUNICATION SYSTEM : 1 set
SELF-POWERED TELEPHONE : 1 set
SAFETY EQUIPMENT & ALARM
EXTERNAL FIRE FIGHTING : 1 x 2900m3/hr (FiFi 1)
WATER/FOAM MONITORS : 2 x 1200m3/hr with remote control
WATER CURTAIN SYSTEM : 1 shipset water noxxles type
FAST RESCUE BOAT & A FRAME DAVIT : 1 x 6 Person type.
INFLATABLE RAFTS : 1 shipset(8 x 25Men)
LIFE BUOY-RING : 12 sets
LIFEJACKET : IMO/SOLAS regulation
INBOARD SAFETY & FIRE FIGHTING : IMO/SOLAS regulation
GENERAL & FIRE ALARM : Heat & smoke alarm
WATER SPRIKLING SYSTEM : 1 full set for engine Rm & accommodation
CCTV SYSTEM (WINCH,CRANE,BOARDIN: Fully sets monitors in W/H.
TANK CAPACITY (Approx.)
FUEL OIL(INCL. C.F.O.) : 1400 m3
POTABLE WATER : 600 m3
DRILL / BALLAST : 1250 m3
CEMENT TANK : 300 m3
MUD/BRINE : 800 m3
RECOVER OIL : 1000 m3
METHANOL : 200 m3
CARGO SYSTEM
FUEL OIL CARGO PUMP : 2 x 100 m³/hr x 80m
FRESH WATER CARGO PUMP : 1 x 100 m³/hr x 80m
DRILL WATER CARGO PUMP : 1 x 100 m³/hr x 80m
MUD/BRINE CARGO PUMP : 2 x 75 m³/hr x 200m Waterhead
METHANOL CARGO PUMP : 2 x 50 m³/hr x 80m
DECK CARGO CAPACITY : 1500 tons (Approx.)
GENERAL,FIRE,BILGE/BALAST, PUMPS : Ship sets;
ALL COOLING,STANDBY PUMPS : Ship sets;
ALL OIL,WATER, SERVICE PUMPS : Ship sets;
