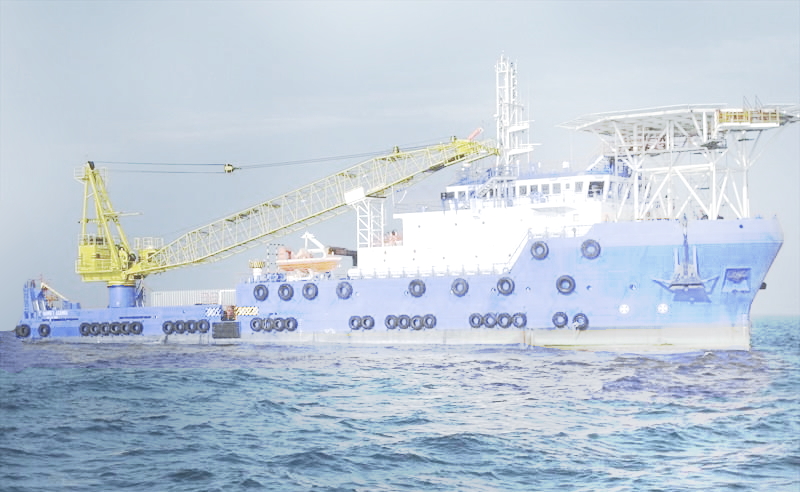

75m DP2 Accommodation Workboat for Sale
General Particular
75m DP2 Accommodation Workboat for Sale
Year Built 2009
Classification American Bureau Of Shipping (ABS + A1+AMS+DPS-2+ )
Dimensions
Length O.A. 75.00 M
Breadth Mould 20.00 M
Depth Mould 6.50 M
Summer Draft 4.988 M
GRT 3275 Tons (approx.)
NRT 980 Tons (approx.)
Free Deck Space 480 m² (approx)
Performance speed (Designed) 13 Knots (approx) @ 100% MCR
TANK CAPACITY
SWB 252 m3 Approx
Fresh Water (Non-potable) 650 m3 Approx.
Fresh Water (Potable) 333 m3 Approx.
Drill Water 120 m3 Approx.
Fuel Oil 485 m3 Approx.
Grey Water 15 m3 Approx.
LO Storage 10.3 m3 Approx.
Bilge Holding 15 m3 Approx.
Dirty Oil 15 m3 Approx.
Sewage Holding 26 m3 Approx.
Hydraulic Oil 20 m3 Approx
ACCOMMODATION
Cabin 4 x 1 man
8 x 2 men
45 x 4 men
Total 200 men
NAVIGATIONAL AIDS
DP System DPS-2
Navtex receiver 1 unit
Radar(96nm range) 2 radars
Echo Sounder 1 unit
Autopilot 1 unit
Gyro Compass 3 unit
Magnetic Compass 1 unit
GPS Navigator 1 unit
SART 2 unit
AIS 1 unit
Speed Log 1 unit
VDR 1 unit
MACHINERY & AUXILLARY MACHINERY
Main Engines 2 x 3000 PS @750rpm, Niigata-Diesel Engine
Main Propulsion 2 x CPP with 360o Steerable, Z-Drive, with Kort Nozzle
Retractable Thrusters 1 x FPP-Type Azimuth Thruster in Kort Nozzle (Motor Driven @705kW)
Bow thrusters 1 x CPP-Type Tunnel Thruster (Motor Driven @ 735kW)
Generating Sets 3 x 590 KW, 440/3/60, Caterpillar
Emergency Generator 1 x 99 KW, 440/3/60, Caterpillar
Shaft Alternator 2 x 1250KW, 440/3/60, Stamford
SAFETY EQUIPMENTS
Comply to SOLAS regulations includes engine room, machine space and accommodation area.
FIRE FIGHTING EQUIPMENT
External 1 x300 m3/hr fire pump
2 x 150 m3/hr fire monitors
Internal Accommodation cabins fitted with heat/ smoke fire detector & sprinkler system & complied to SOLAS
DECK MACHINERY AND FITTINGS
Main Pedestal Crane
API 2C, ABS certified
Boom Length 41.2 meter Lattice boom type
Capacity (Main Hoist SWL) 40 tons @ 18.8 meter radius
Provision Crane Telescopic Boom Type
Capacity 3 tons @ 18 meter
ANCHORING SYSTEM
Anchor Windlass 1 x Anchor Windlass @ 46mm dia. Chain size
Duty Pull 10 Tons @ 14m/min approx
Anchors 2 x 2640 kg stockless anchors, 46mm dia. chain,
4 points mooring System 4 x single drum mooring winches; Min. 44mm dia x 1000m Wire Rope; Flipper Delta anchor
OTHER EQUIPMENT
2 x Water Makers, 34 m/t per day capacity, Reverse Osmosis System
Sewage Treatment plant x 1
F.O. purifier x 1
Fast Rescue Craft c/w A-frame type davit x 1
L.O. purifier x 1
Garbage Compactor x 1
Oily bilge water separator x 1
