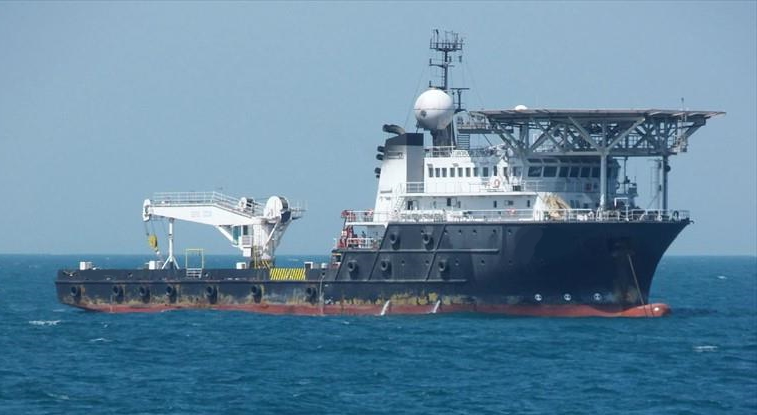

73M DP2 DIVE SUPPORT VESSEL FOR SALE
VESSEL PARTICULARS
BUILT: ASTILLEROS BALENCIAGA S.A. ZUMAIA, SPAIN
YEAR OF BUILD: 2004
CLASSIFICATION: AMERICAN BUREAU OF SHIPPING
NOTATION: A.B.S. + A1, CIRCLE E, + AMS, + DPS2
PRINCIPAL DIMENSIONS
LENGTH, OVERALL 73.30M (EXCLUDING FENDERS)
LENGTH, B.P 66.60M
BREADTH, MLD 16.00M
DEPTH, MLD 7.50M
SUMMER DRAFT 5.80M
CLEAR DECK 40.0M X 15.00M – 600 SQ. METRES
UNIFORM DECK LOADING 5 TONNES/SQ. METRE
DEADWEIGHT AND CAPACITIES
FUEL OIL TANKS (100% FULL) : 797M3 (INCLUDING DAILY SERVICE/SETTING)
FRESH WATER TANKS (100% FULL) : 207M3
BALLAST WATER TANKS (100% FULL) : 1080M3
DECK CARGO : 800 TONNES
FRESH WATER GENERATION : 24 TONNES/DAY
GROSS REGISTERED TONNAGE (GRT) : 2642
NET REGISTERED TONNAGE (NRT) : 792
PERFORMANCE
SERVICE SPEED : 14 KNOTS
FUEL CONSUMTION (STEAMING) : 18.5 TONNES PER DAY
ECONOMIC SPEED : 10 KNOTS
FUEL CONSUMTION (STEAMING) : 8.75 TONNES PER DAY
FUEL CONSUMPTION (DP) : 8.5 – 10.5 TONNES PER DAY
FUEL CONSUMPTION (PORT) : 1.0 TONNE PER DAY
DECK CRANE:
1 x ELECTRO-HYDRAULIC DECK CRANE WITH A STATIC SAFE WORKING LOAD OF 45.0 TONNES AT 6.50 METRES,
HOOK TRAVEL 300 METRES (RIGGED TWIN LINE). FOR SINGLE LINE OPERATION THE HOOK
TRAVEL IS 600 METRES WITH A STATIC SAFE WORKING LOAD OF 22.5 TONNES
MAXIMUM OUTREACH OF THE BOOM IS 18.0 METRES WITH A STATIC SAFE WORKING LOAD OF 15.0 TONNES.
PROVIDED WITH AN AUXILLARY WHIP LINE AND HOIST WITH A STATIC SAFE WORKING LOAD OF 7.0 TONNES, HOOK TRAVEL 300 METRES.
PROPULSION AND MACHINERY
MAIN ENGINES: 2 x WARTSILA 6R32 MEDIUM SPEED IN LINE MARINE DIESEL ENGINES EACH RATED AT 3350 BHP
AZIMUTH UNITS: 2 x SCHOTTEL SRP 2020 CP EACH RATED AT 2460 kW
TUNNEL THRUSTERS: 3 x SCHOTTEL STT 550 LK CP, ELECTRICALLY DRIVEN EACH RATED AT 700 kW
GENERATORS: 3 x DIESEL DRIVEN (WARTSILLA 4R32) MARINE ALTERNATORS,
EACH OF 1560 kW, 440 V, 3 PHASE, 60 Hz ARRANGED FOR PARALLEL OPERATION
EMERGENCY GENERATOR: 1 x DIESEL DRIVEN (CATERPILLAR 3406C) MARINE ALTERNATOR RATED 250 kW
ACCOMMODATION: 82 P
ELECTRONICS
2 x RADAR
1 x ECHO SOUNDER
3 x GYRO COMPASS (INTERFACED TO DP)
1 x AUTO PILOT (LINKED TO 2 GYROS)
1 x WIND SPEED AND DIRECTION INDICATOR
1 x FLEET 77 SATCOM (INTERFACED TO DP)
2 x INMARSAT C SATCOM
1 x MINI M SATCOM
1 x NAVTEX
2 x VHF RADIO WITH DSC FACILITY 1 x SSB RADIO WITH DSC FACILITY
2 x FACSIMILE (1 LINKED TO MINI M)
2 x SART
1 x EPIRB
3 x PORTABLE VHF RADIO
1 x WATCH RECEIVER
1 x PUBLIC ADDRESS SYSTEM AND INTERCOM
1 x SOUND POWER TELEPHONE SYSTEM
1 x AUTOMATIC IDENTIFICATION SYSTEM (AIS)
1 x SHIP SECURITY ALERT SYSTEM (SSAS)
HELIDECK
