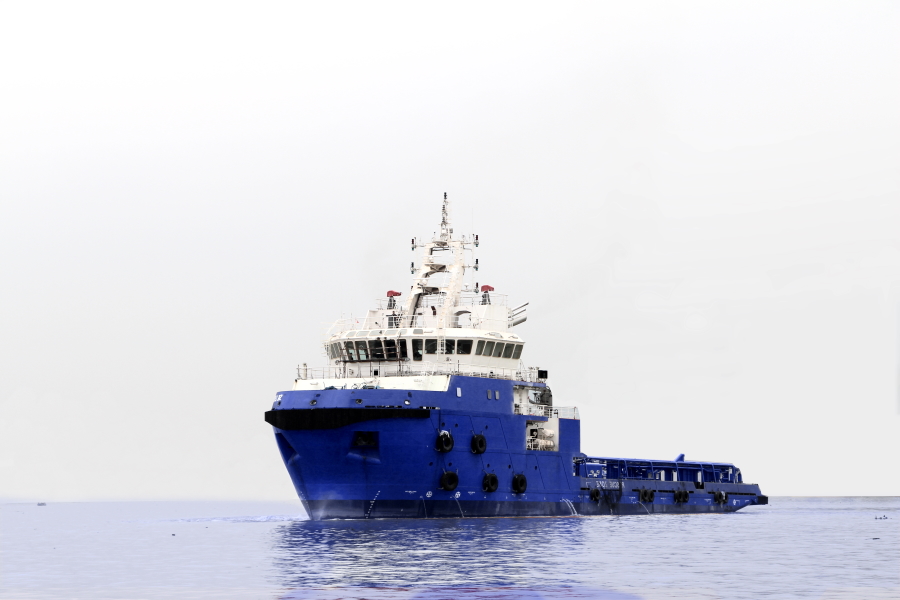

65m DPII Anchor Handling Tug Supply for Sale New Built
General Particular:
65m DPII Anchor Handling Tug Supply for Sale New Built
Class: : ABS
Class notation : ABS+A1(E) OFFSHORE SUPPORT VESSEL (AH, SUPPLY-HNLS, TOW) OSR
C1 +AMS + DPS-2 FFV 1, SPS CODE UWILD UNRESTRICTED SERVICE
Flag Singapore
Dimensions
Length overall : 65.00M
Length BP : 58.50M
Beam moulded : 16.00M
Depth moulded : 6.20M
Draft designed : 5.00M
D. scantling : 5.20M
Deadweight about 1,800 t at scantling draft.
Accommodation
8 x 1- berth cabins : 8 men
5 x 2- berth cabins : 10 men
8 x 4-berth cabins : 32 men
Total : 50 men
Tank capacity (approx)
Potable water : 440 m3
Fuel oil : 580 m3
WB/Drill water : 690 m3
Dry bulk cargo tanks : 150 m3
Mud / Brine/R.O : 460 m3 (SG 2.5)
Lub oil : 10 m3
Dirty oil : 10 m3
Foam : 10 m3
Dispersant : 10 m3
Deck cargo capacity : about 600 t
Deck cargo space : about. 435 m2
Cargo deck design load : 7 t / m2
Machinery:
Engines : 2 x 3,300 HP. Medium speed
Performance Speed : 12.5 knots at trial condition, 100% MCR, design draft
Bollard pull : 80 ton
Deck height : 3,000mm between main deck and forecastle deck.
2,800mm between forecastle deck / upper forecastle deck / navigation bridge
deck.
4,000mm between navigation bridge deck and compass deck (incl. 1,000mm
high cofferdam).
Deck Crane : SWL 2t at outreach 15m
