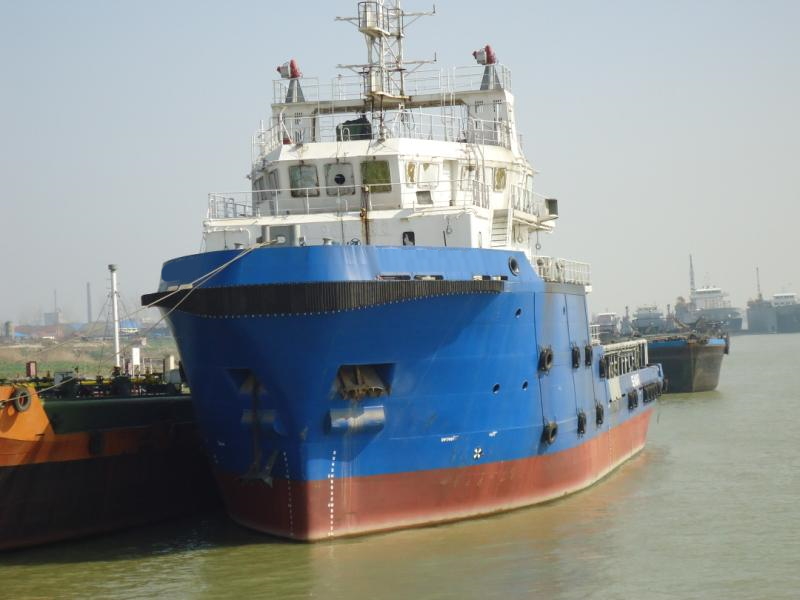

59M Oil Recovery Vessel for Sale
General Particular
Class: ABS
Class Notation:
ABS + A1 (E) OFFSHORE SUPPORT VESSEL
(FIRE-FIGHTING CLASS 1,
OIL RECOVERY CAPABILITY CLASS 2)
+ AMS + DPS-1.
Delivery Q4 2019
Dimension
Length overall 59.25 m
Length between perpendiculars 52.20 m
Breadth moulded 14.95 m
Depth moulded 6.10 m
Draft moulded 4.95 m
Tonnage
Deadweight @ 4.95m draft 1360 Tonnes
Gross tonnage 1690~
Deck loading 7.5 Tonnes/m2
Clear deck area 370 m2
Accommodation 40 men
Fuel oil 590 m3
Fresh water 480 m3
Water ballast/Drill water 400 m3
Mud 530 m3
Recovery Oil 750 m3
Foam 13 m3
Detergent 13 m3
Trial speed (100% MCR) 13.0 knots
Main engine Caterpillar 3516C 2 x 2575 BHP
Propulsion system 2 x controllable pitch propeller
Generating set 2 x 350KW diesel driven
Shaft generator 2 x 800 KW via PTO
Bow thruster 1 x 8.0T controllable pitch type
Stern thruster 1 x 3.5T controllable pitch type
Tuggers 2 x 10 tonnes @ 15m/min
Capstan 2 x 5 tonnes @ 15m/min
Bow towing bollard SWL 40 tonnes
Deck crane 1 x 3 tonnes @ 9m
